CORiTEC® 350i PRO+

The CORiTEC 350i PRO+ is a high-performance, five-axis dental milling machine designed for modern dental laboratories requiring precision, versatility, and throughput. Built on a robust polymer-concrete frame to minimise vibration, it integrates high-resolution servo drives with absolute encoders for exceptionally accurate machining. A defining feature of the PRO+ variant is its water-cooled 2.6 kW (or up to ~3.6 kW in some specs) milling spindle running at up to 60,000 rpm, which combined with stainless-steel blank holders ensures thermal stability and low vibration even under demanding loads.

Characteristics

1. WATER-COOLED SPINDLE
  2.6 kW spindle power, 60.000 rpm

1. POLYMER CONCRETE BASE
  Revolutionary basic structure for the highest stability

1. HIGH-DYNAMIC SERVO DRIVES
  For up to 20% quicker processing

1. STAINLESS STEEL BLANK HOLDER
  Highest stability and vibration-free processing

1

2

3

4

CORiTEC® 350i PRO+ - HIGHLIGHTS

Integrated wet and dry processing
Integrated temperature compensation
Absolute measuring system in all axes
50% faster roughing
Optimized for the highest surface quality and precision
Suitable for 24-hour production operation
Integrated zero point clamping system
Automatic tool shaft cleaning during tool changing

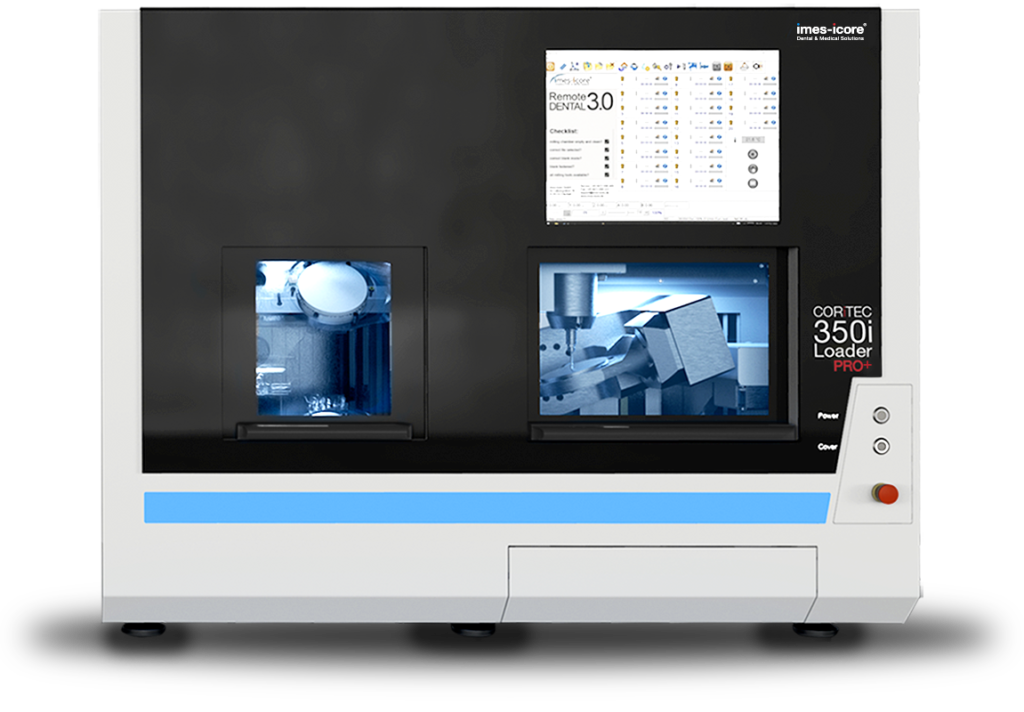

CORiTEC 350i Loader PRO+ with 12-fold blank changer
